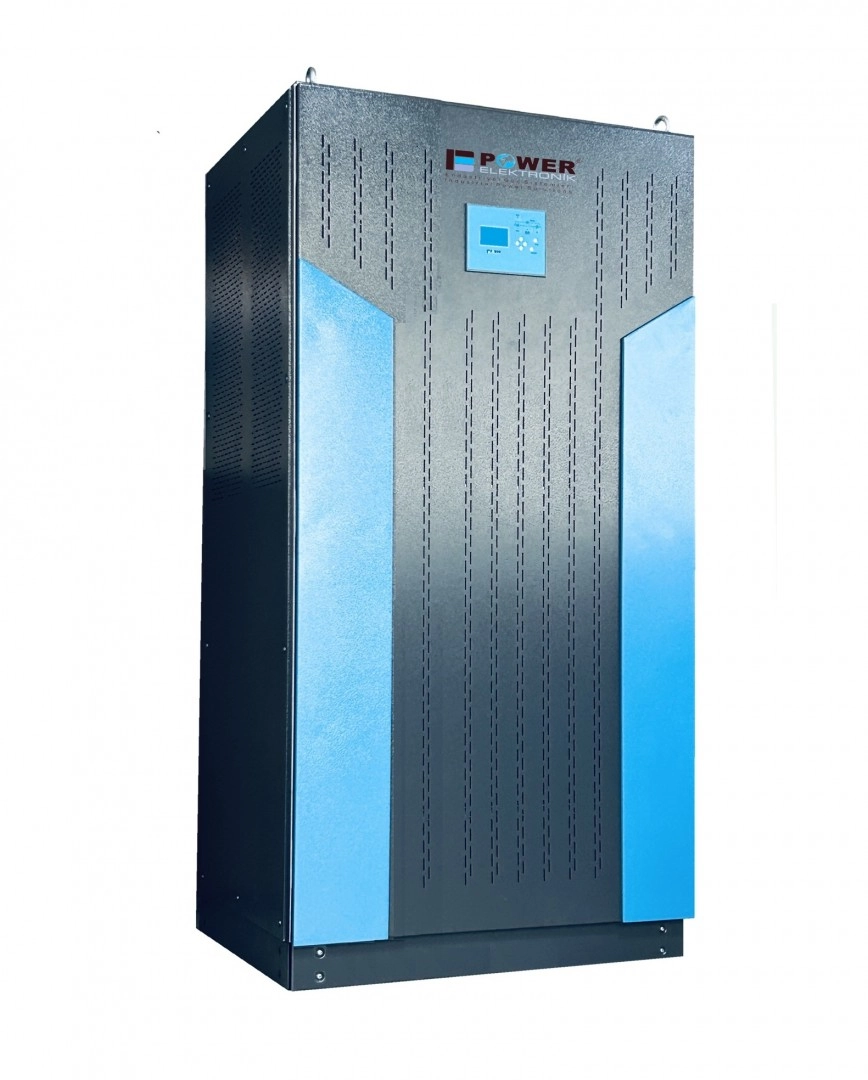

PWR33 SIRIUS 120 KVA ONLINE UPS

PWR33 SIRIUS 120 kVA ONLINE UPS

PWR33 SIRIUS 3-Phase UPS uses the latest DSP technology, which can be programmed for a wide variety of electrical environments with high-level performance and protection features. With the PWR33 SIRIUS UPS, efficiency, reliability and functionality have been increased to unattainable levels with analog technology. It is used safely in private and public hospitals, airports, factories, industrial facilities, machinery sectors, banks, shipyards, power generation plants, etc. IT sectors.

Product Information

PWR33 SIRIUS 120 kVA ONLINE UPS

»  3 Phase Input-3 Phase Output
»  Transformerless Double Conversion Online IGBT UPS design
»  120kVA Output power
»  380/4000/415 Vac Output voltage selection option
»  50Hz - 60Hz operating frequency automatic recognition
»  Output Power Factor 0.8 (120kVA = 96kW)
»  Cold Start (Ability to start from battery)
»  Provides overload and overheat protection with Static Bypass feature
»  Enclosure is completely metal, does not break or crush during transportation
»  Does not contain internal battery, works with external 60 battery
»  Easy to use with 5 inch LCD color screen control
»  Inputs and outputs can be easily connected consists of terminals
» 1 Years warranty
» Net Dimensions (W x D x H mm : 1200 × 900× 1800, Weight 400Kg


» Technical Data for the Installer:

     » Input Fuse Value                :3 x 250 A
     » Input Cable Section           :4 x 70 mm²
     » Grounding Cables              :1 x 70 mm²
     » Output Fuse                       :3 x 200 A
     » Output Cable Section        :4 x 70 mm²
     » Battery Fuse Value            :2 x 400 A
     » Battery Cable Section       :3 x 70 mm²
