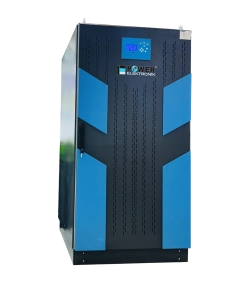

PWR11 RACK OL-3000 MODEL 3kVA ONLINE UPS

PWR11 RACK OL-3000 MODEL 3kVA ONLINE UPS

1 Phase Input - 1 Phase Output, 3 kVA / 2700 Watt Power PWR11 RACK OL Model UPS; Microprocessor controlled, fully automatic, fully sine wave ONLINE LCD Uninterruptible Power Supply is suitable for home-office computers, POS devices, data centers, machines and all devices powered by 1 phase 220 VAC.

This UPS is rack mount type, can be installed to the rack type 3U 19 inch cabinets and also with supporting parts can be installed as a tower.LCD screen can be rotated 90 degree

Product Information

PWR11 RACK OL-3000 MODEL 3kVA ONLINE UPS

» 1 Phase Input-1 Phase Output
» 3U Rack and tower installation available
»  It has 3 kVA output power
»  220/230/240 Vac Output voltage selection possibility
»  Automatic recognition of 50Hz - 60Hz operating frequency
»  Output Power Factor is 0.9 (3kVA = 2700W)
»  Cold Start (Ability to start from battery)
»  Provides overload and overheat protection with Static Bypass feature
»  The outer body is completely metal, it will not break or be crushed during transportation.
»  6 pcs internal 12V  9Ah batteries, provides battery power for 5 minutes at full load / 15 minutes at half load
»  Plug and play compatible, does not require special installation
»  Inputs and outputs are in the form of plugs and sockets, easy to connect and remove
»  1 Year warranty
»  Technical information for installers
          »  Input Fuse Rating                   : 1 x 25 A
          »  Input Cable Cross-Section     : 2 x 2.5 mm²
          »  Grounding Cables                  : 1 x 2.5 mm²
          »  Output Fuse                            : 1 x 16 A
          »  Output Cable Cross Section  : 2 x 2.5 mm²
          »  Battery Fuse Rating               : 2 x 32 A
          »  Battery Cable Cross Section  : 2 x 2.5 mm²
